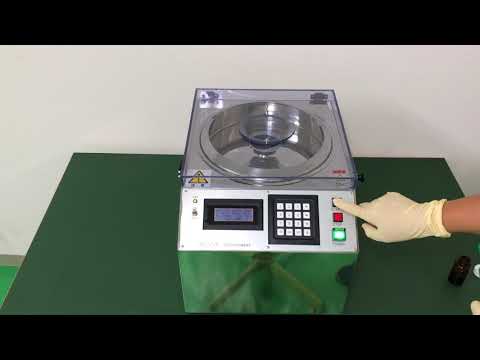

Compatible with up to φ150mm (circular) and □110mm (rectangular) substrates
Feature:
- ・Compact and desktop-size
- ・High performance, low price. Suitable for laboratorial use
- ・Safety cover with interlock sensor
- ・Chemical solution can be dripped during the rotation through the hole on the safety cover
- ・Programmable up to 10 steps and 100 patters
- ・Suitable for development evaluation using various chemicals
- ・Compatible with autonomous delivery robot (customized)
Application
Semiconductor, solar battery, mobile device, optical lens, glass lens, bio nanotechnology, housing material, cutting-edge medical device, LCD, and other manufacturing and experiment for coding and producing thin film
Customer
Small-size laboratories, major companies, universities and public offices
Trial Use and Sample Test
Requests for offering trial model and conducting sample test are acceptable for free. Contact us for details.
Specification
Substrate size
Φ5～Φ150mm（Max.Φ6 inches, □110mm）
Work (substrate) weight
Up to 300g (contact us for details)
Cup inner dimension
Φ300mm
Overall size (mm)
W350, D450, H 325 (cover closed) / 640 (cover open)
Power supply
1Φ 100V-10A (AC servomotor 200W) 50 / 60Hz
Spin speed and accuracy
0-6000rpm/±1rpm（under load）
Substrate adsorption pressure
-70 ～ -80kPa
Vacuum pump displacement: over 12L/min
(6mm tube can be attached in one touch)
(6mm tube can be attached in one touch)
No. of programmable steps and patterns
Display
LCD, 4 lines (20 letters per line)
Receipt no., Rotation, Time, Adsorption pressure
Receipt no., Rotation, Time, Adsorption pressure
Control
Microprogram control (programmable with numeric keypad)
Material of outer cover and cup
SUS304, electropolished
Teflon coating available as an option
Material of safety cover
Transparent PVC
Instillation hole is covered with a sliding cover.
Safety measure
Interlocking function with safety cover and magnet sensor
● Recipe won’t start when cover is open.
● Automatic rotation halts when cover is opened.
Interlocking by substrate adsorption pressure
● No rotation during non-adsorption
● Recipe won’t start when cover is open.
● Automatic rotation halts when cover is opened.
Interlocking by substrate adsorption pressure
● No rotation during non-adsorption
Weight
About 22 kg
Delivery
About 30 days after accepting an order.
● Sample stage can be delivered within about 30 days as well. Please contact us for details.
● Sample stage can be delivered within about 30 days as well. Please contact us for details.
Price list
Unit
Main Unit
Compact, tabletop, low-cost models
JPY 800,000
Packing and delivery cost (in Japan)
国内一律 / 軒先渡し
￥10,000
Option
Based on substrate size
Available material: POM, PCTFE, PTFE, PEEK, aluminum*
* Teflon coating available
Available material: POM, PCTFE, PTFE, PEEK, aluminum*
* Teflon coating available
JPY 65,000 –
Contact us for estimation
Contact us for estimation
Vacuum pump
for substrate suction
for substrate suction
● Compact diaphragm dry vacuum pump 12S (connecting port can be modified)
● Exhaust velocity: 12 L/min /14 L/min (50/60Hz)
● Transparent urethan vacuum tube: Φ6×3m
● Exhaust velocity: 12 L/min /14 L/min (50/60Hz)
● Transparent urethan vacuum tube: Φ6×3m
JPY 40,000
Based on substrate size and sample table’s shape （made by POM and SUS304）
JPY 70,000 –
Contact us for estimation
Contact us for estimation
Positive/negative rotation
Option for configuring positive and negative rotation
JPY 100,000
