We manufacture spin etcher and spin cleaner
We make the most of our spin control technology to manufacture spin etcher, spin cleaner and spin dryer.
In many cases, we receive orders for substrate cleaning applications for semiconductor equipment.
We can produce customized models that combine various functions such as single wafer or badge style, explosion proof mechanism, and ultrasonic cleaning.
As with the customization of spin coaters, we customize the size and specifications of the above devices to meet your needs. For example, the device can be rotated in a nitrogen gas atmosphere to prevent oxidation, and various types of solutions can be automatically dripped. We have a wealth of experience in manufacturing spinning products, and we are happy to provide advice and other services to meet your application needs. Please do not hesitate to contact us.
Spin cleaner
A spin cleaner removes invisible small particles, oil and other contaminants from the top surface of substrates.In many cases, we receive orders for substrate cleaning applications for semiconductor equipment.
We can produce customized models that combine various functions such as single wafer or badge style, explosion proof mechanism, and ultrasonic cleaning.
Spin dryer
A spin dryer utilizes the centrifugal force of rotation and airflow to promote drying. We can also manufacture the integrated spin cleaner and dryer model, especially for semiconductor device substrates that require delicate handling. Spin etcher
A spin etcher uses solution droplets to corrode and peel away excess thin film, except for the necessary circuitry exposed in the pre-processing stage, primarily in semiconductor manufacturing.As with the customization of spin coaters, we customize the size and specifications of the above devices to meet your needs. For example, the device can be rotated in a nitrogen gas atmosphere to prevent oxidation, and various types of solutions can be automatically dripped. We have a wealth of experience in manufacturing spinning products, and we are happy to provide advice and other services to meet your application needs. Please do not hesitate to contact us.
Customers
● Public organization (research institute and technology center)
● Educational institutions
● Research institute and R&D center of private companies
● Electronic manufacturer, chemical corporation, printing corporation and iron manufacturer
Past Products
W-1: Single-wafer spin cleaner
W-3: Spin Dryer
W-4: Spin cleaner
- Spin cleaner (dryer)
- Desktop type
- Single-wafer style
- Automatic dripping unit

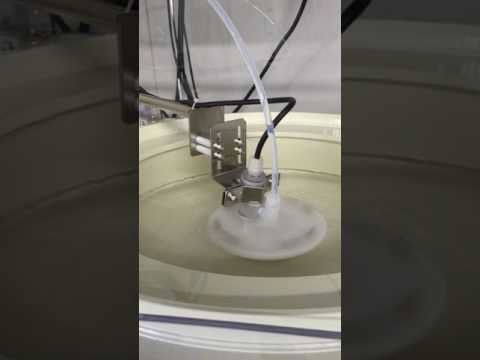

Dripping unit with automatic swing arm by pressurized tank
Features
The wetted part is made of PVC or PP.
Pressurized tank provides pure water to conduct the rinse cleansing of substrate surface.
Pressurized tank provides pure water to conduct the rinse cleansing of substrate surface.
Substrate size
Max.φ6 inch (wafer) and □100mm (glass)
AC100V Max.5000rpm
AC100V Max.5000rpm
Dimension
410W×600D×500H （ACT-300WS）
W-6: Spin cleaner (dryer)
- Spin cleaner (dryer)
- Desktop type
- Single-wafer style
Features
Spin cleaning is automatically performed while dripping a specified chemical solution.
Wetted parts are made of PP.
Mechanical chuck is employed.
Liquid wastes can be separated into the tank.
Controlled by touch panel
Wetted parts are made of PP.
Mechanical chuck is employed.
Liquid wastes can be separated into the tank.
Controlled by touch panel
Substrate size
Max.φ8 inch (wafer) and □150mm (glass)
Three-phase AC 200V Max.5000rpm
Three-phase AC 200V Max.5000rpm
Dimensio
1200W×900D×2000H （ACT-400AWS）
W-8: Spin etcher for φ8 inch substrate with back rinsing function
